Hand Wired Gibson Les Paul Wiring Harness Perfect To Upgrade Epiphone

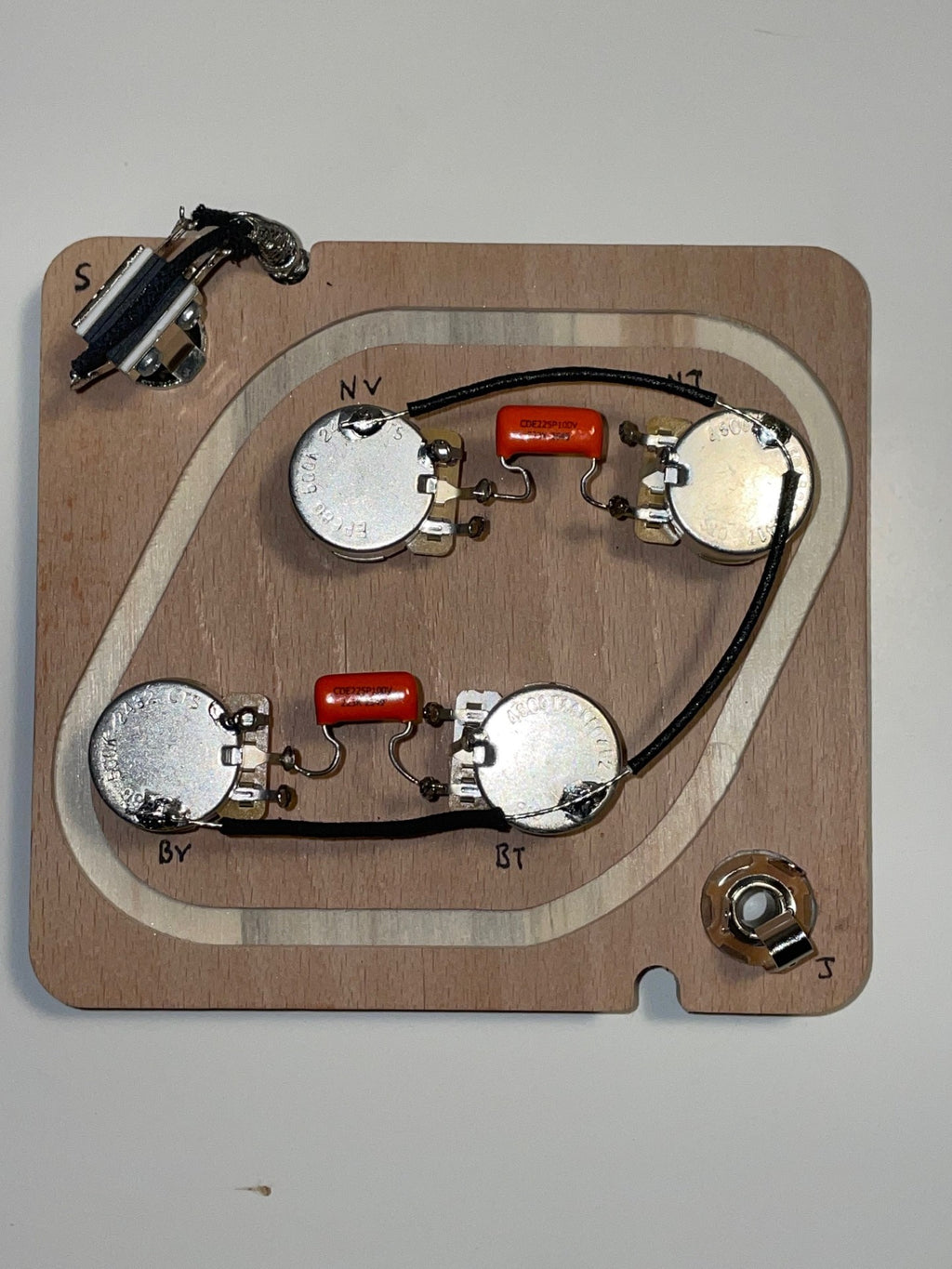

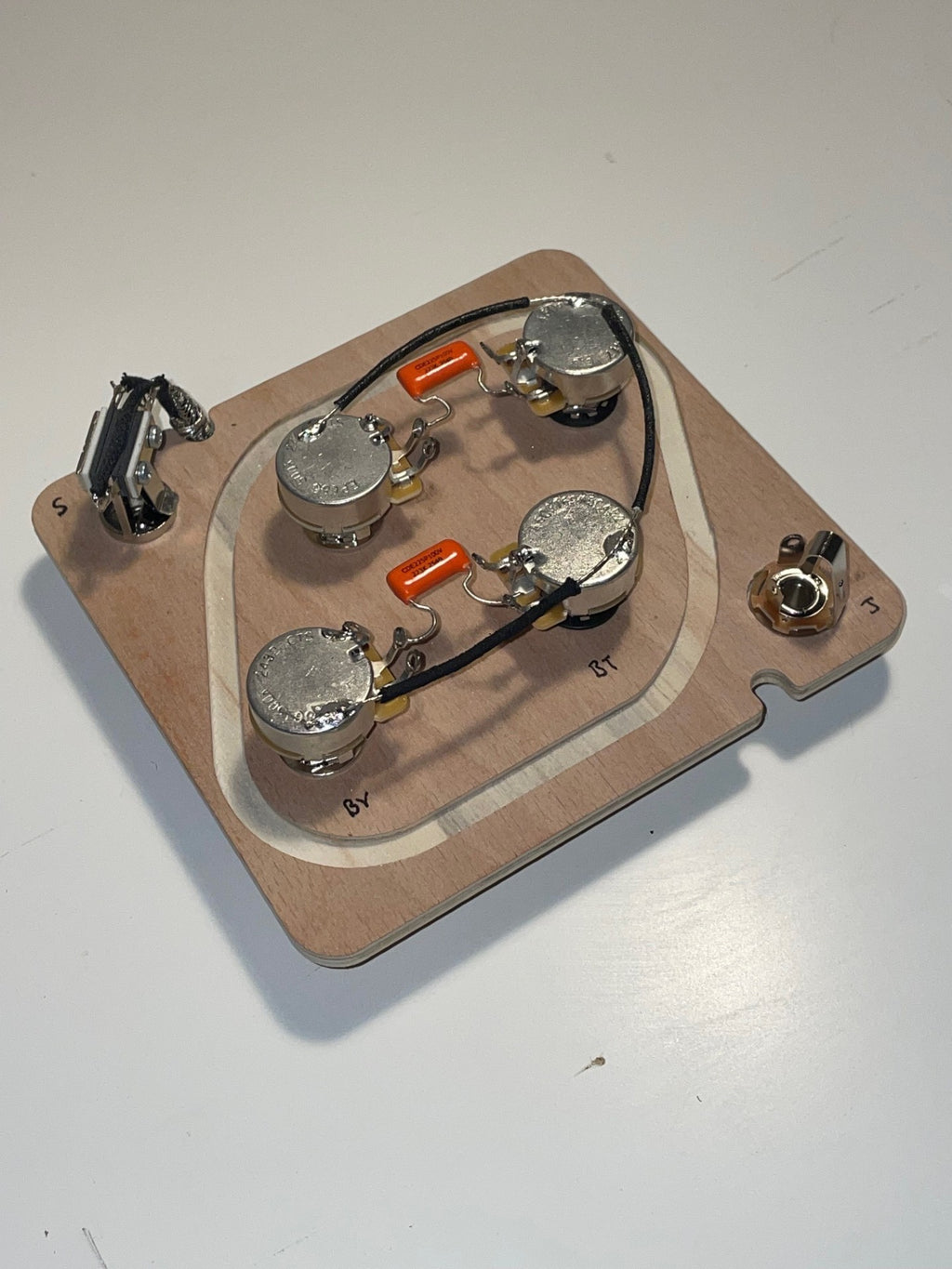

Included in this kit:

X4 CTS 500k audio taper medium shaft potentiometers

X2 Sprague 0.022uf capacitors.

X1 standard 3 way toggle switch

X1 Epiphone 1/4 Jack socket

Traditional braided wire

X1 wiring diagram

All wired to 50’s wiring which is the must have combination for any les Paul guitar

50’s wiring is often considered the best option for a Les Paul–style guitar because it preserves clarity and dynamics as you roll the volume down. In this wiring scheme, the tone control is connected to the output of the volume pot rather than the input, which means high frequencies are retained instead of being bled off.

As a result, the guitar stays brighter and more articulate at lower volume settings, with less muddiness and more usable sweep on the controls. This makes it especially effective for players who rely on the volume knob for cleanup and expressive control—one of the reasons it became a hallmark of vintage Gibson Les Paul tones.

We also do more affordable versions of this harness using different brands of parts which we have tried and tested in our own guitars.

Other capacitors are also available upon request.
