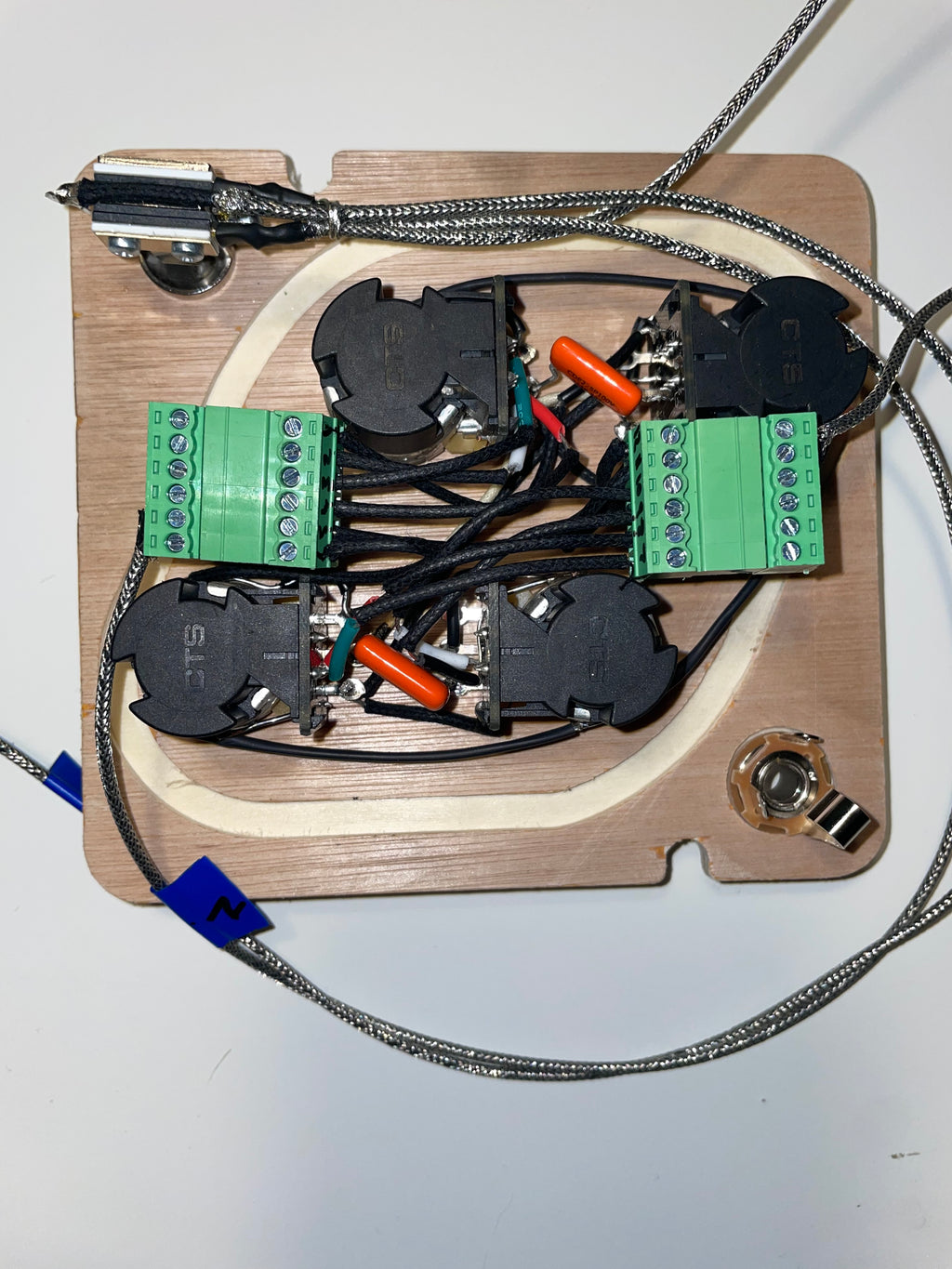

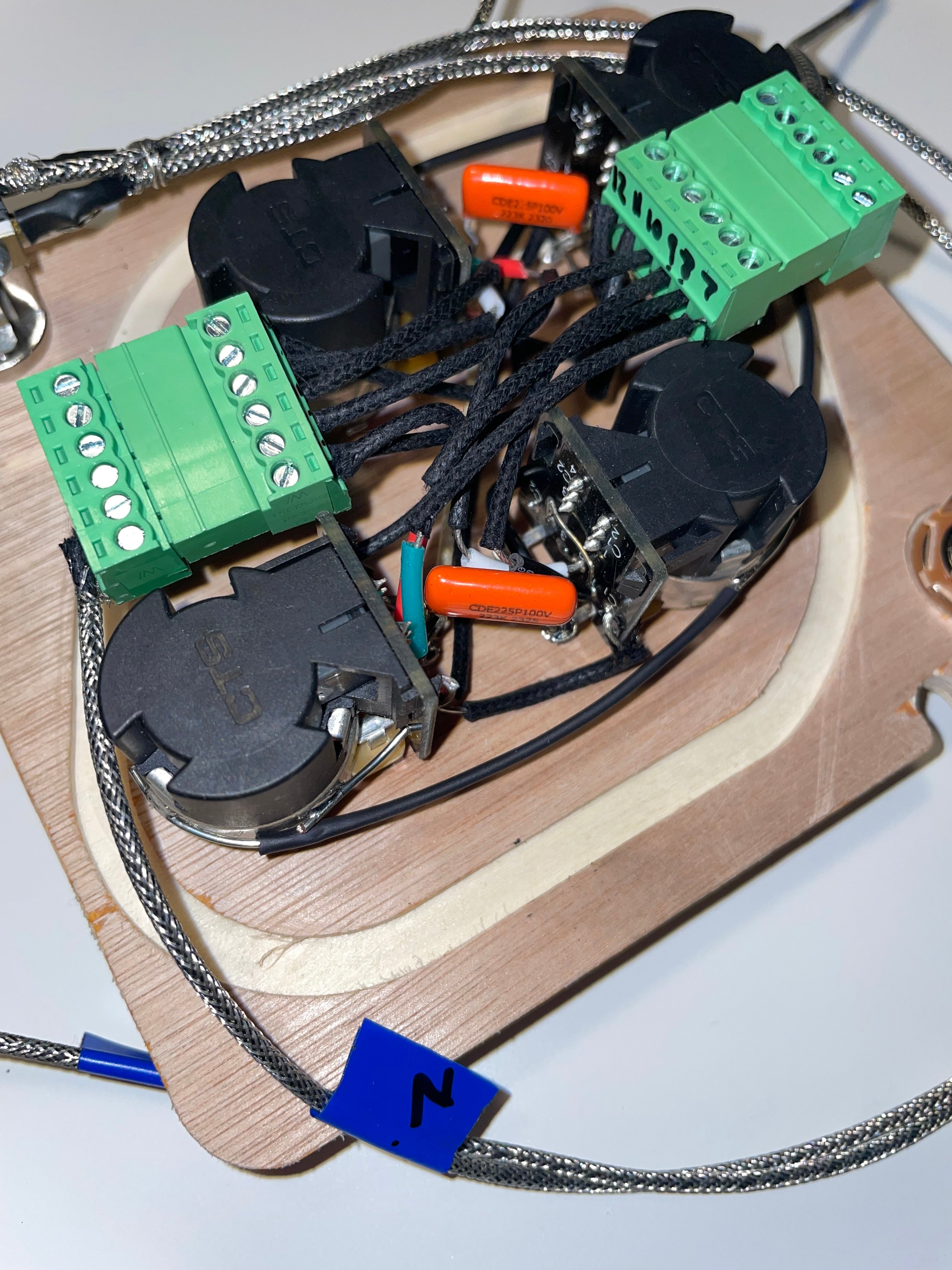

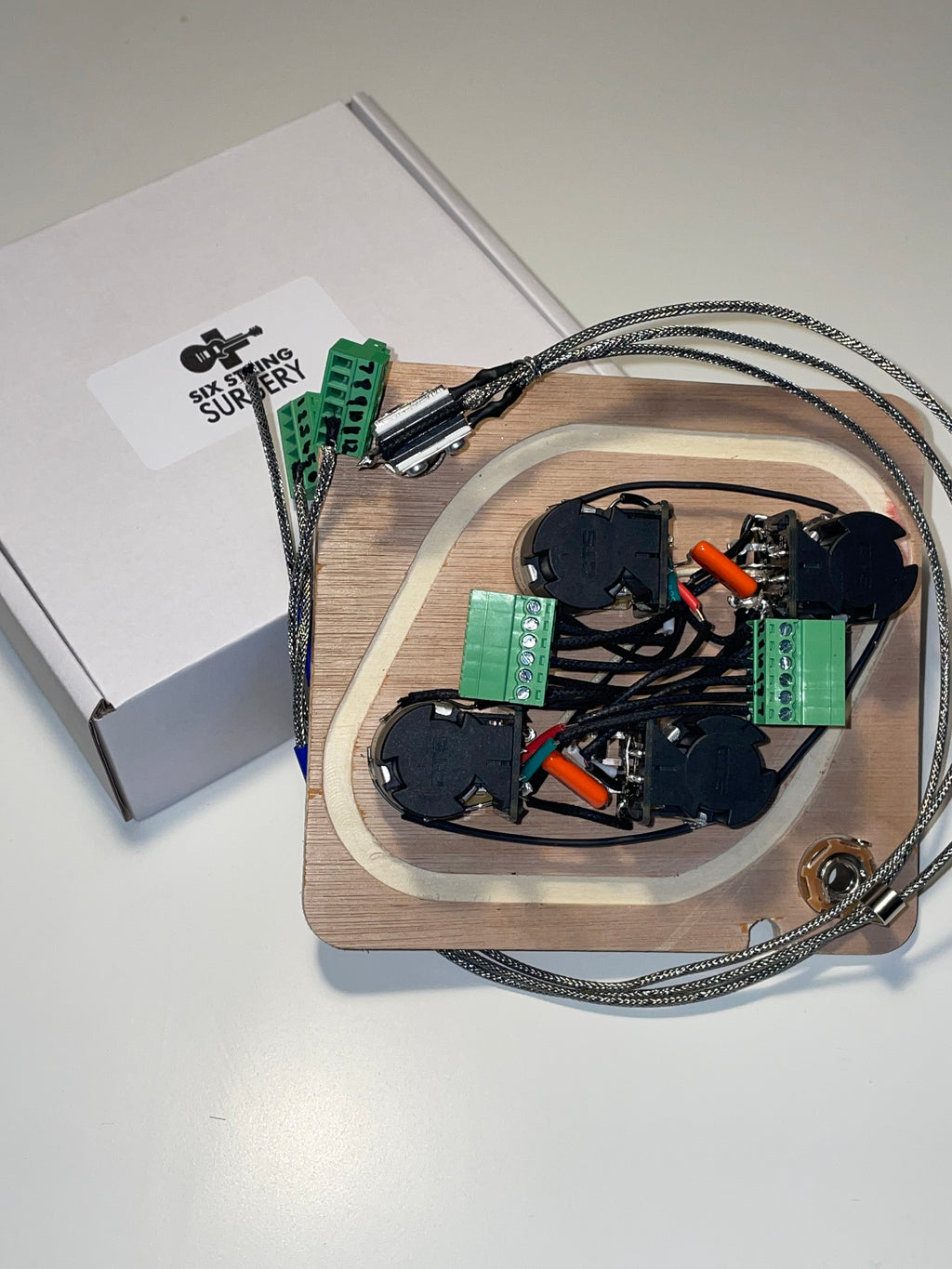

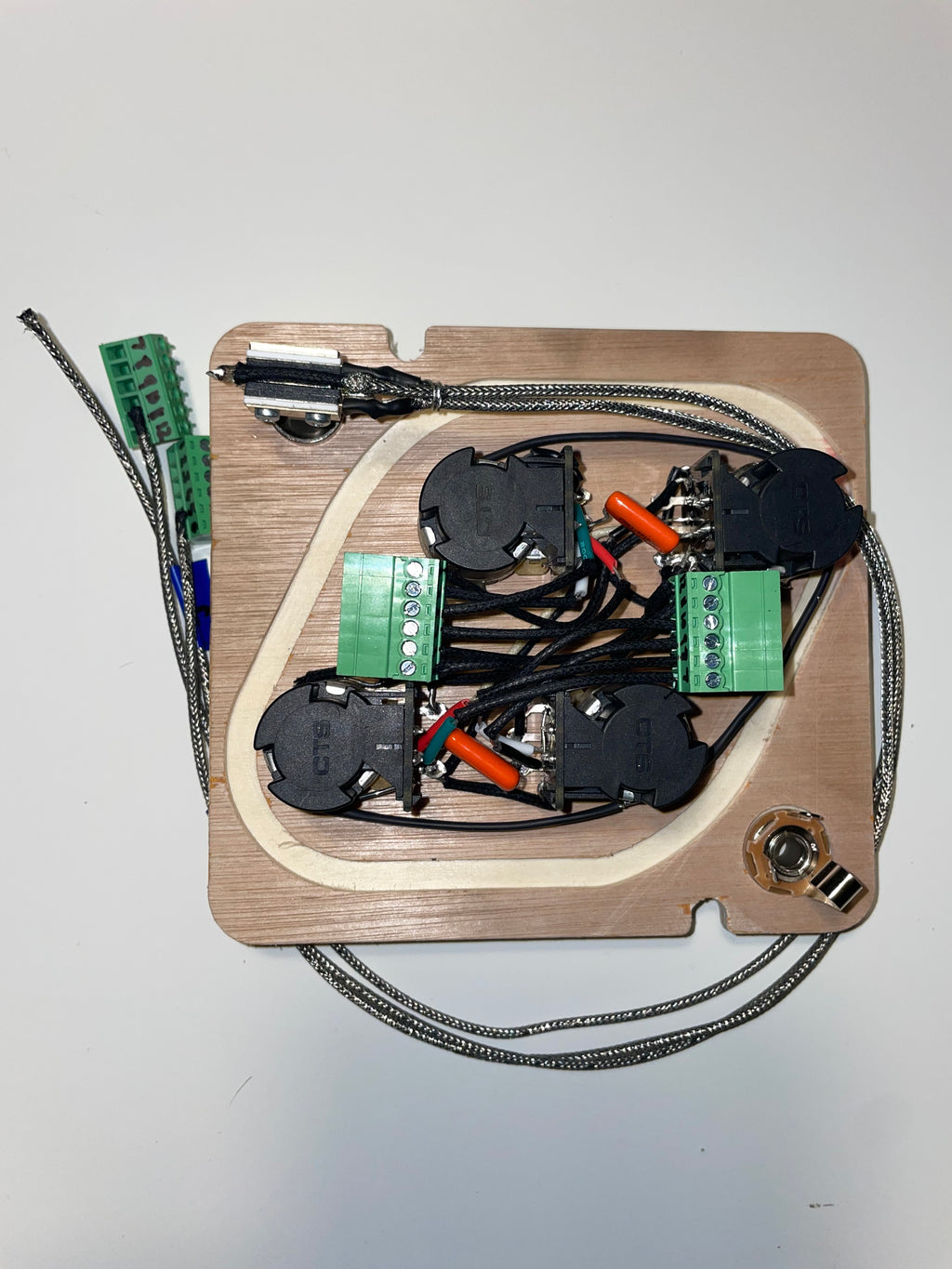

Jimmy Page Les Paul Wiring Harness – Prewired with Push/Pull Pots

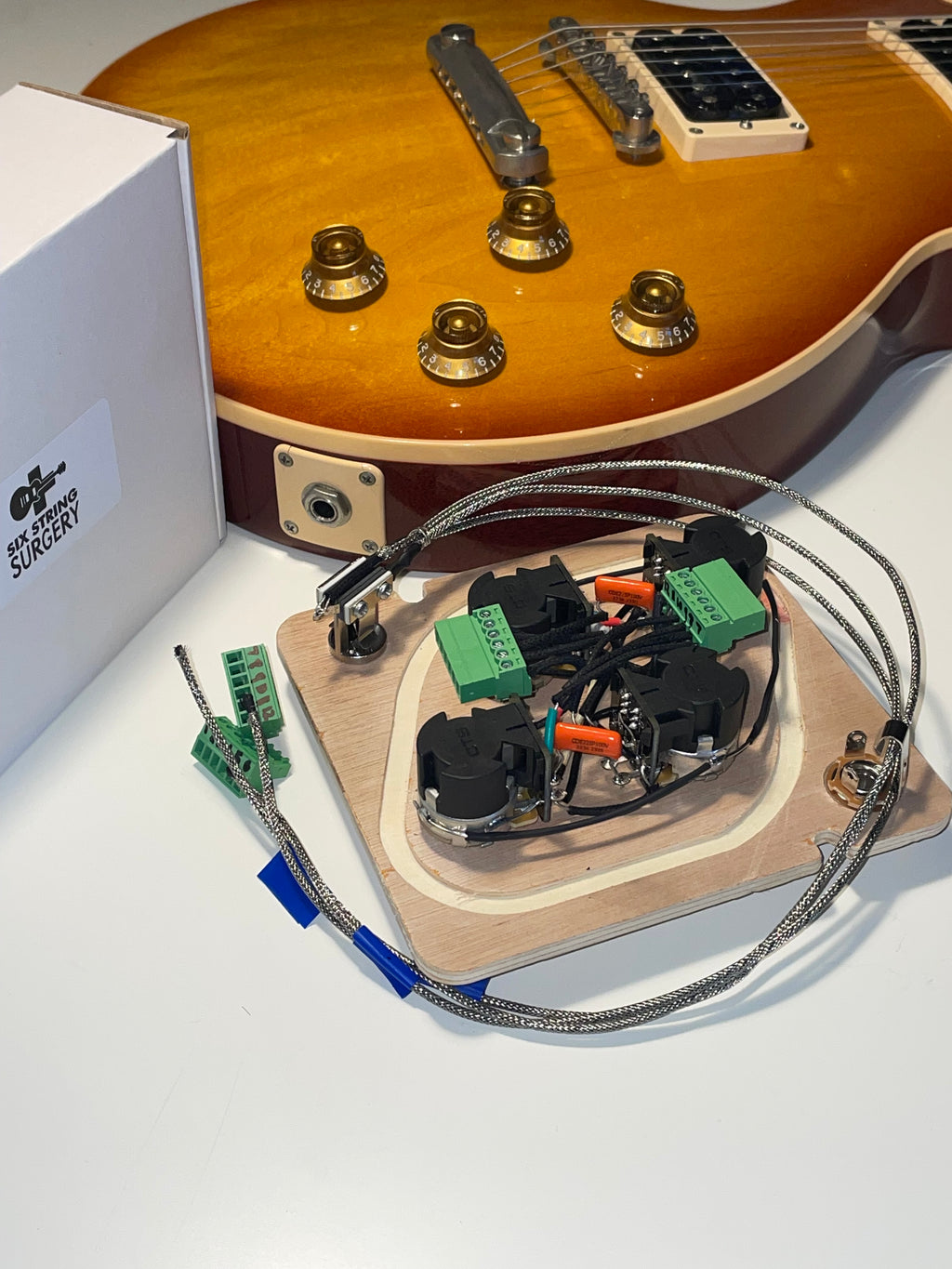

Upgrade your Les Paul with this expertly crafted Jimmy Page-style wiring harness, designed to unlock an incredible range of tonal options while retaining classic Les Paul functionality.

This advanced wiring setup features four push/pull CTS A500K potentiometers, giving you access to the iconic Jimmy Page versatility. With all controls in the down position, your guitar operates just like a traditional Les Paul. Pull up the switches, and you open the door to a wide palette of tones including coil splitting, series wiring, and out-of-phase sounds.

Built using high-quality components, this harness delivers both reliability and premium tone.

Specifications:

• 4 × CTS 500k push/pull pots

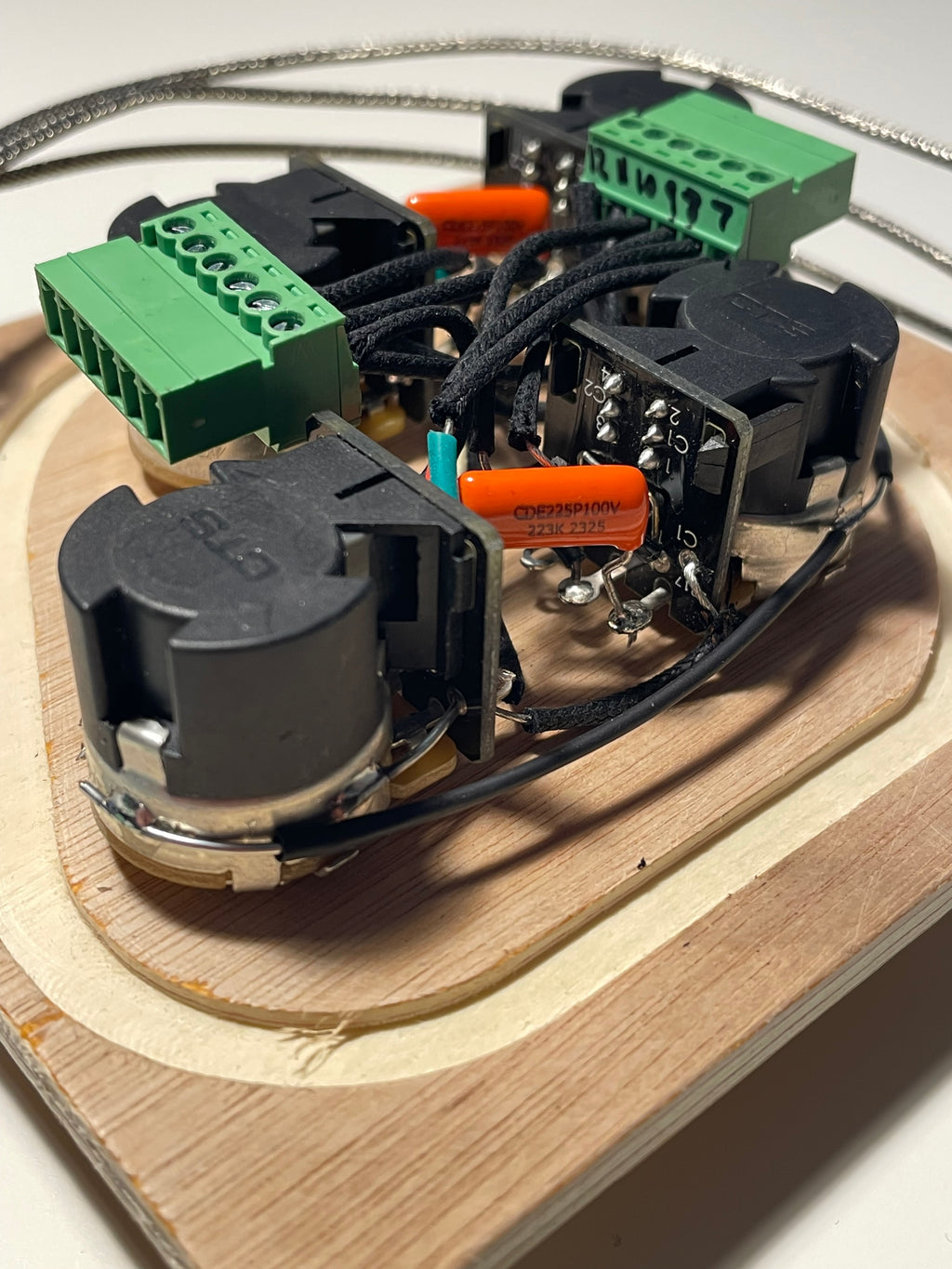

• 0.022µF Sprague Orange Drop capacitors

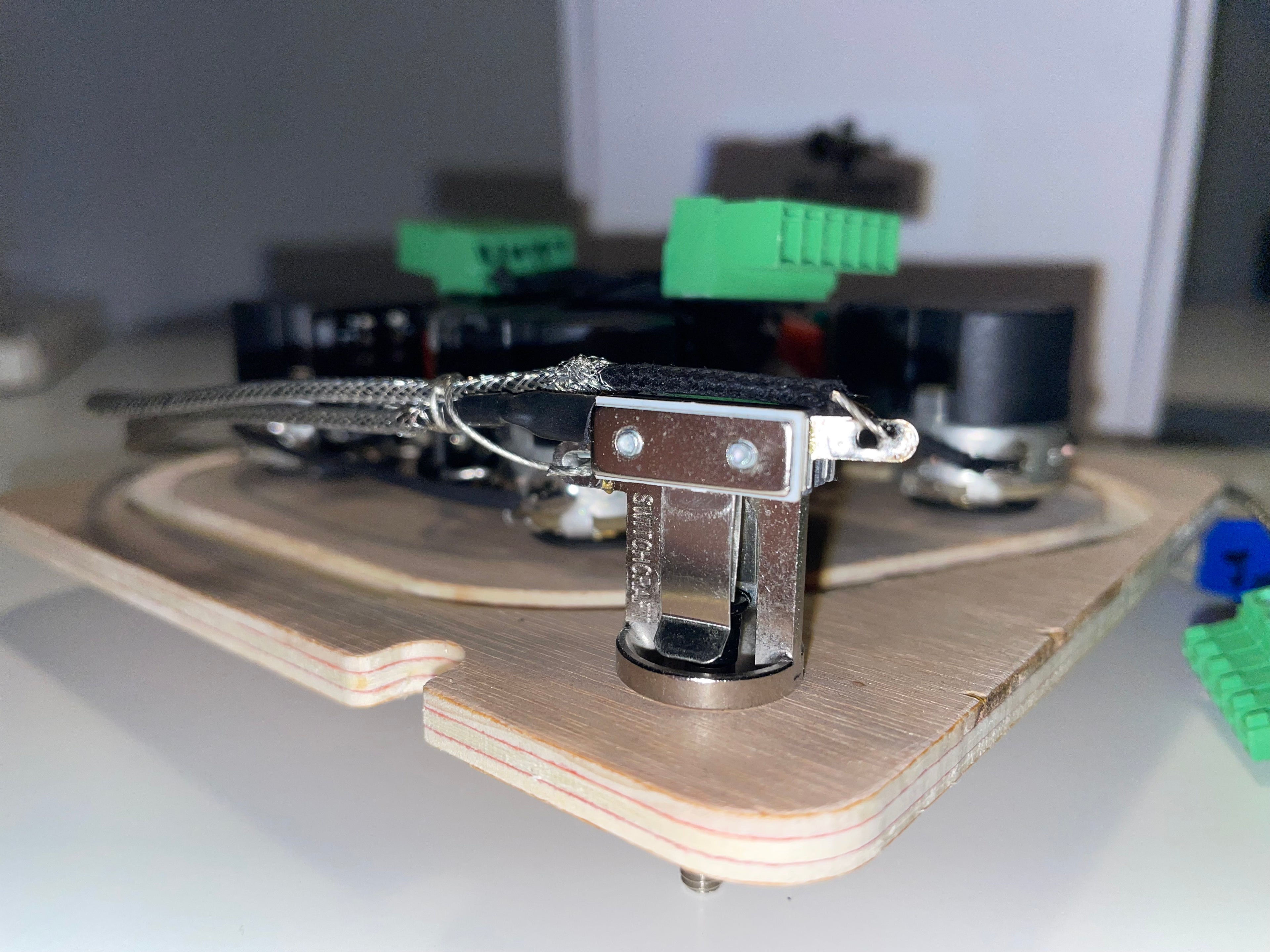

• Switchcraft 3 way toggle switch

• Switchcraft 11TWN Jack socket

• Pre Wired - all you have to do is solder the jack socket

Push/Pull Functions:

• All down – Standard Les Paul wiring

• Neck Volume (pulled up) – Neck humbucker coil split

• Neck Tone (pulled up) – Bridge & neck pickups in series

• Bridge Volume (pulled up) – Bridge humbucker coil split

• Bridge Tone (pulled up) – Pickups out of phase

Perfect for players looking to expand their tonal range without modifying the look of their guitar. Whether you're chasing classic rock tones or experimenting with unique sounds, this wiring harness delivers exceptional versatility.

⚠️ Important: This wiring harness requires humbuckers with 4-conductor (4-wire) pickups for all switching functions to work correctly.

Some Epiphone models may require control the holes reaming to fit CTS pots (due to smaller factory holes)
