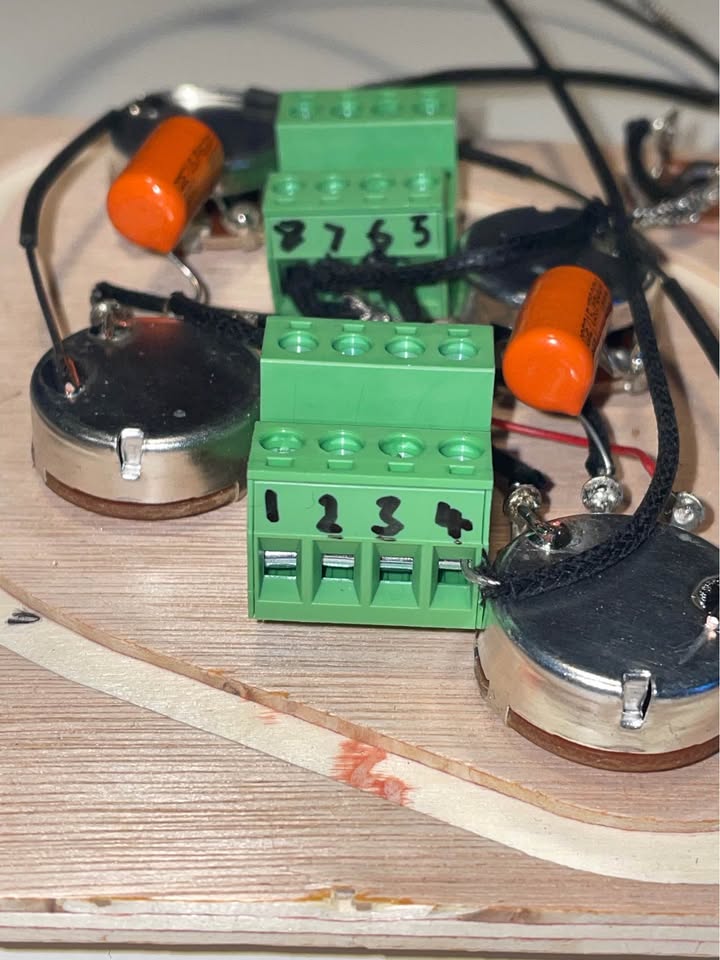

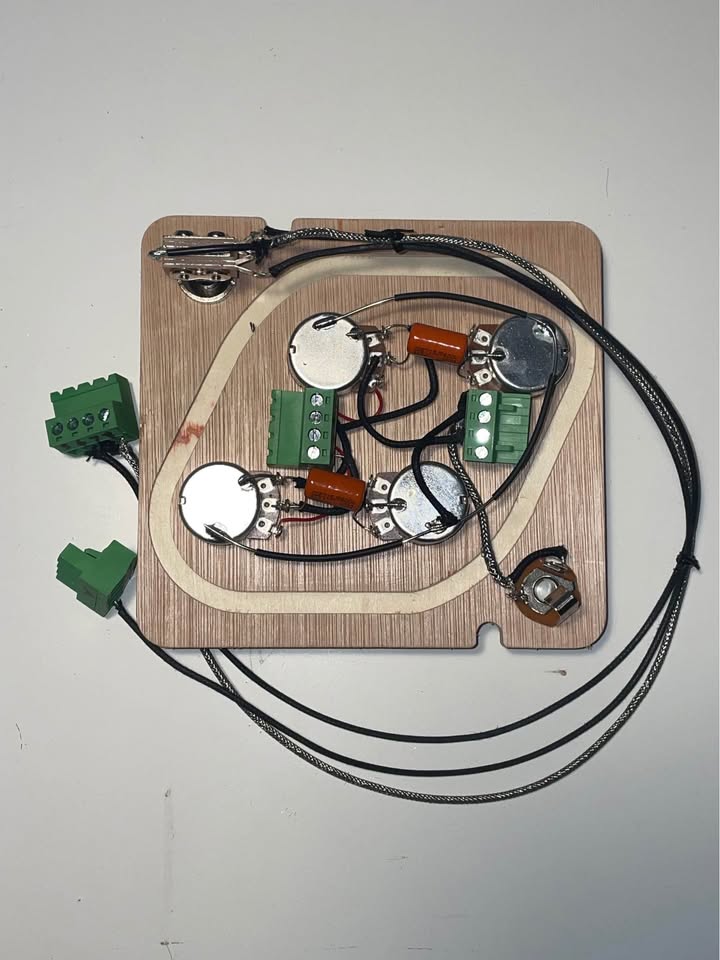

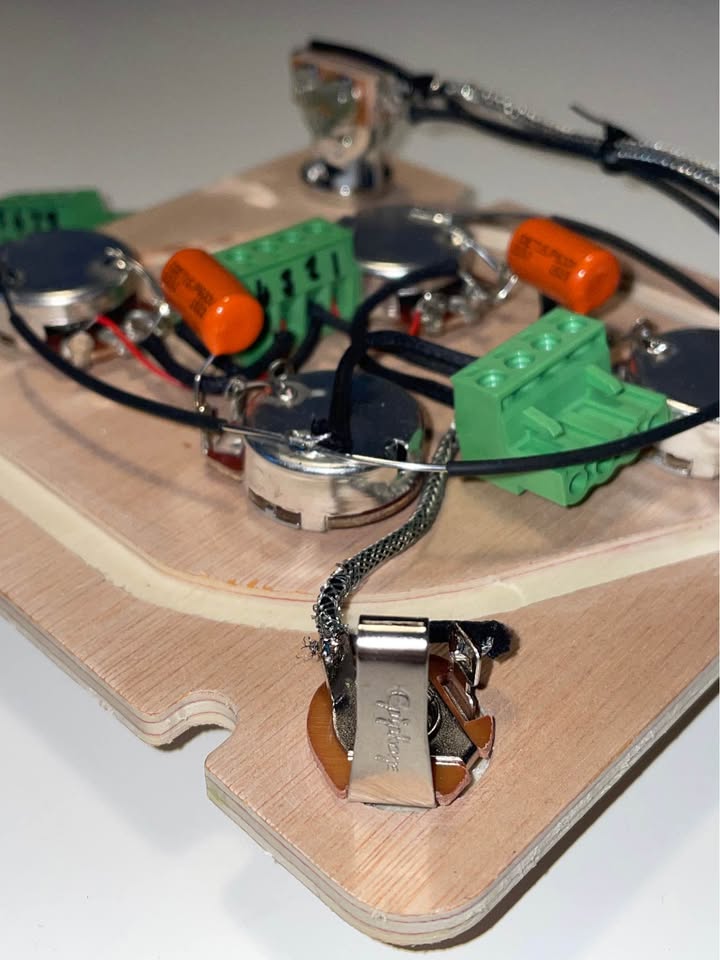

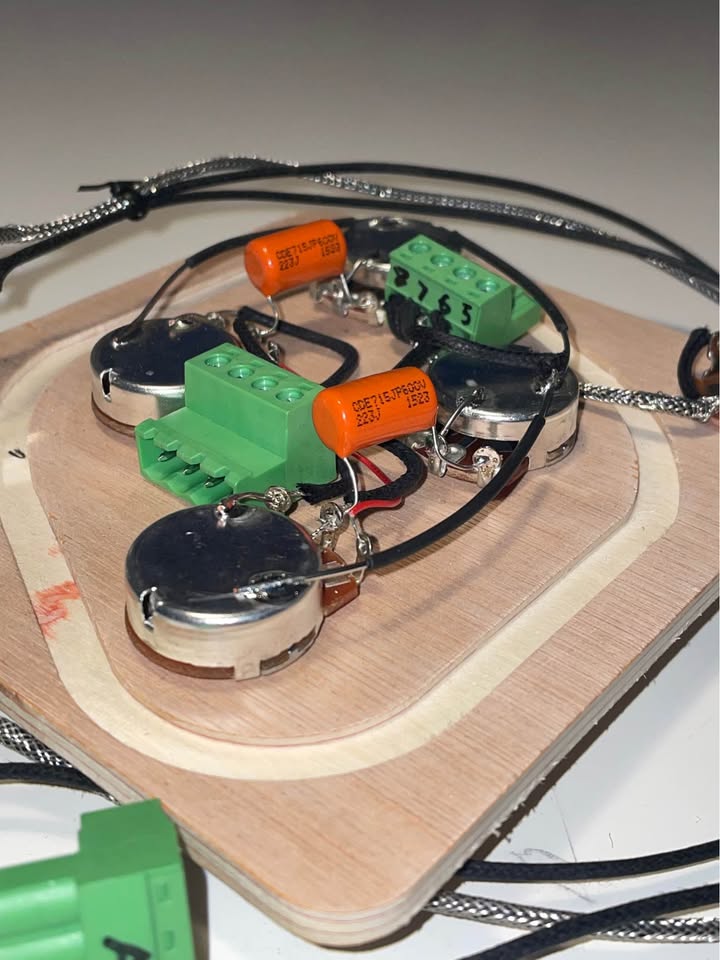

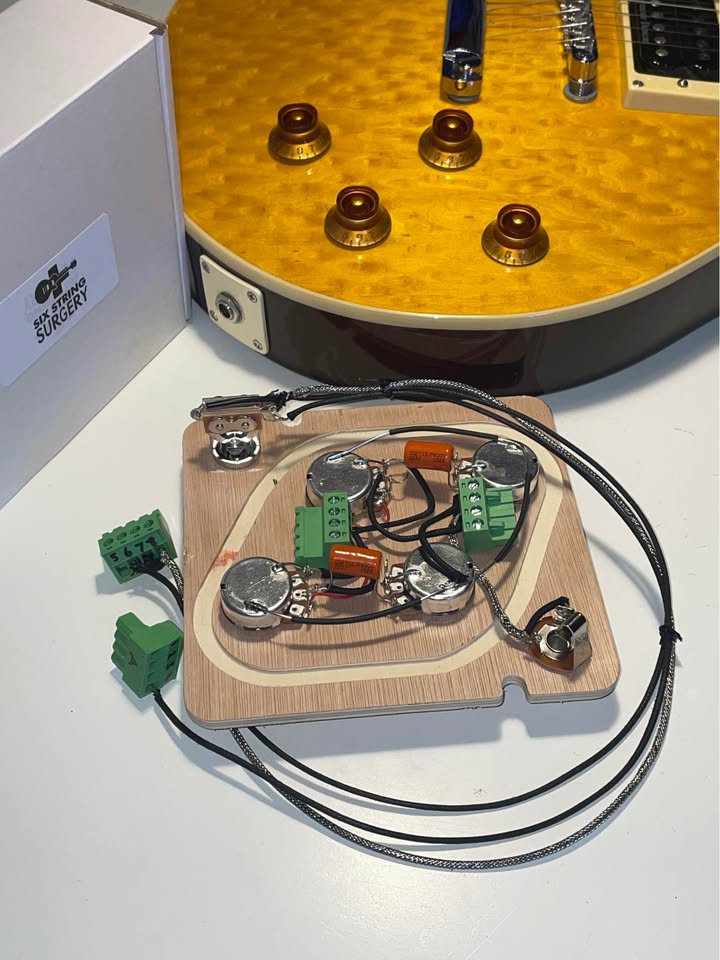

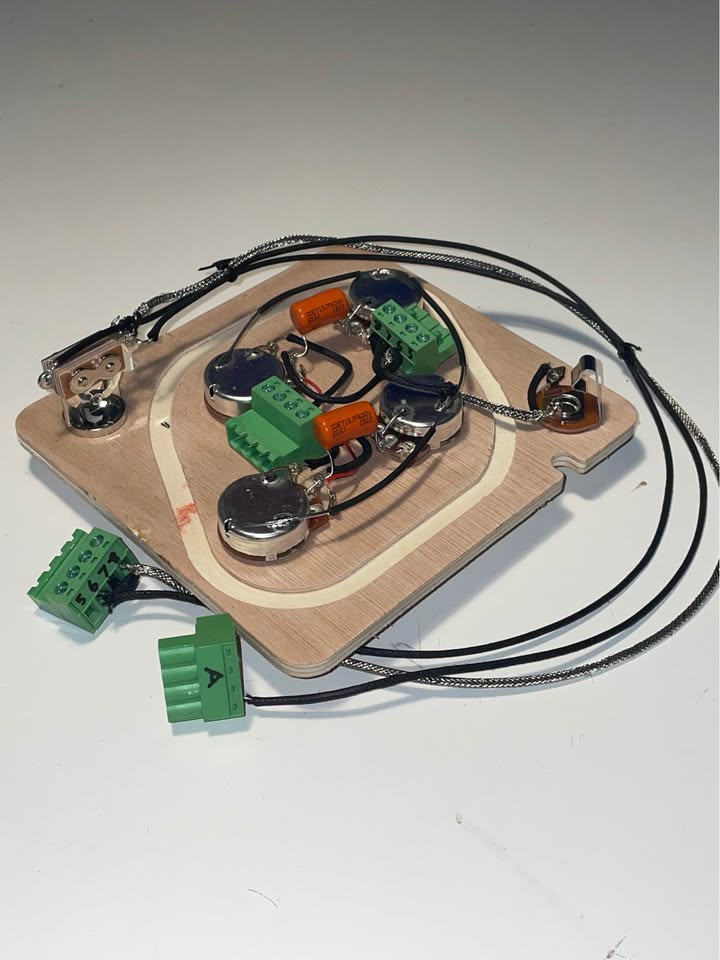

Gibson / Epiphone Les Paul SOLDER FREE Wiring Loom Solderless Connectors

Solderless Hand wired Gibson Les Paul harness perfect to upgrade an Epiphone or similar.

Using FLEOR A500K potentiometers for the volume controls and B500K potentiometers for the tone controls

Medium length brass shaft

Orange drop 0.022uf capacitors

Standard 3 way toggle switch

Epiphone 1/4 inch Jack socket

Vintage gavitt braided/cloth wire

wired to 50’s wiring this is the must have combination for any les Paul guitar.

50’s wiring is often considered the best option for a Les Paul–style guitar because it preserves clarity and dynamics as you roll the volume down. In this wiring scheme, the tone control is connected to the output of the volume pot rather than the input, which means high frequencies are retained instead of being bled off.

As a result, the guitar stays brighter and more articulate at lower volume settings, with less muddiness and more usable sweep on the controls. This makes it especially effective for players who rely on the volume knob for cleanup and expressive control—one of the reasons it became a hallmark of vintage Gibson Les Paul tones.

This is a solder free kit, all you need is to fix your pickup wires to the connectors. A diagram is included.
